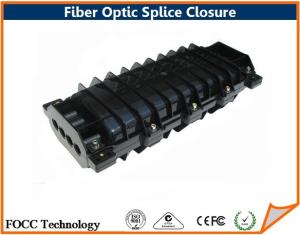

Mechanical PC Body Fiber Optic Splice Closure Dome Sealing , Fibre Optic Splice Box
The FOCC 08 - 5 is designed to be used in any environment (aerial, pedestal, buried, handhole, manhole). It is well suited to accommodate a maximum of 96 fibers for various splice applications such as track (backbone), spur (branch) or distribution points. We proven mechanical sealing technology for the base-to-dome sealing provides for easy installation & re-entry. Cable ports can be sealed using the robust & reliable heat shrink mechanism.
Specification
| Part No. | Dimension (mm) | Diameter of cable | Max capacity (F) | Tray Capacity | Weight (kg) | Material | Packing |
| 08 - 5 | Ф140*410 (mm) | 25mm | 96 Fibers | 12 Or 24 Cores | 2.5 | PC | 6 Pcs Per Outer Box Packed |
Features
Small volume, big capacity, valid and durable;
The product has reliable equipment to fix the cable, and earth-fault protection;
Modularity and loose-leaf fiber-collection tray;
Take in radius of the light fiber, ≥40mm;
Every fiber-collection tray can neatly overturn, and operate easily;
Adopt high quality mechanical self-locking equipment of joint ring to airproof the joint box;
All the heat-shrinkable material is imported. The connection box can be opened without special tools, and can be opened repeatedly;
Convenient and quick operation, good air tightness;
Connect the buried and overhead optical fiber cable lines.
Applications
Aerial-hanger, Wall-mounting, Direct Buried.
Accessories
Shipping Via Those Follow Tools
FOCC Fiber Optic Splice Closure Quality
Notes:
Prices and specifications are subject to change without notice. FOCC is not responsible for typographical or photographic errors. MORE INFORMATION please contact us focc@fiberfocc.com directly, your choices are under our best service.
