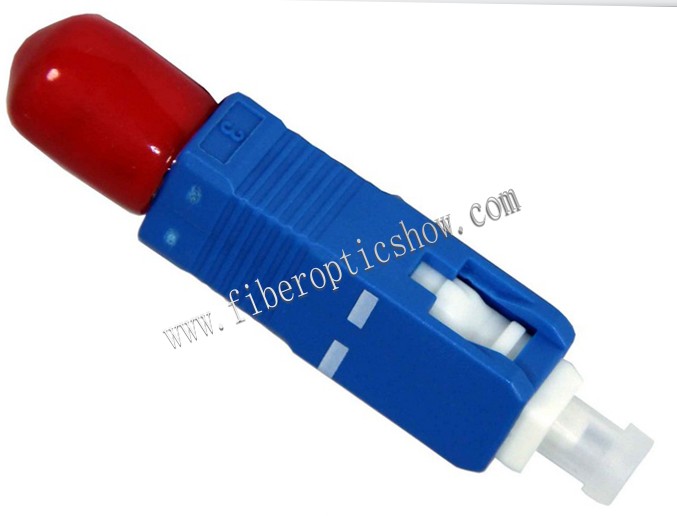

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Name: Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter 9125μm Singlemode
Brand: FOCC
Price: 1 USD

Brand Name : FOCC

Model Number : FOCC - A008

Certification : CE, ISO9001, RoHS

Place of Origin : China

MOQ : 10 Pieces

Payment Terms : Western Union, T/T, L/C, MoneyGram

Delivery Time : Delivery Time 5 - 7 Working Days

Packaging Details : Box of 12 Individually Bagged Adapters Or Customized Requirements

Fiber Count : 1

Material : Metal

Adapter Series : Hybrid Adapters

Fiber Type : 9/125μm Singlemode

Connector Type : ST - SC

Ferrule Material : Zirconia

Contact Now

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Briefly Speaking

Our Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. FOCC offering a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

Manufacturer	FOCC
Part No.	FOCC - A008
Adapter Series	Hybrid Adapters
Fiber Type	9/125μm Singlemode
Connector Type	ST - SC
Ferrule Material	Zirconia
Fiber Count	1

Applications

A cable to cable fiber optic connection;
Cable to equipment fiber optic connection.

Features

ST style to SC style;

Use in singlemode applications;

Free-hanging or panel-mount design;

Dust caps protect against debris and contamination;

RoHS Compliant.

Environmental & Mechanical Data
Operating Temperature	- 40 to + 75º C
Storage Temperature	40 to + 85º C
Temperature Cycling (61300-2-18)	- 40 to + 75º C, 40 cycles = 0.2dB change
High temperature (61300-2-18)	70º C for 96Hrs, < 0.4dB change
Damp Heat (61300-2-19)	40º C at 93%RH for 96 Hrs, < 0.4dB change
Vibration-Mated Pair (61300-2-1)	10 - 55Hz, 1.5mm P to P < 0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, < 0.2dB change

Specification	Zirconia Sleeves	Phospor Bronze
Insertion Loss	Typical ≦0.05dB; Max≦0.20dB	Typical ≦ 0.10dB
Durability	< 0.1dB Typical change,500 matings
Note: Zirconia tested with SMF Fiber, Phospor Bronze sleeve tested with MMF Fiber

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Shipping Terms

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

FOCC Fiber Optic Adapter Quality

Hybrid Tipe Fiber Optic SC Male to ST Female Hybrid Adapter, 9/125μm Singlemode

Notes:

Prices and specifications are subject to change without notice. FOCC is not responsible for typographical or photographic errors. Please contact us at focc@fiberfocc.com for detailed inquiry.
